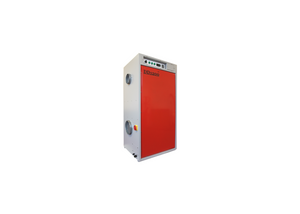

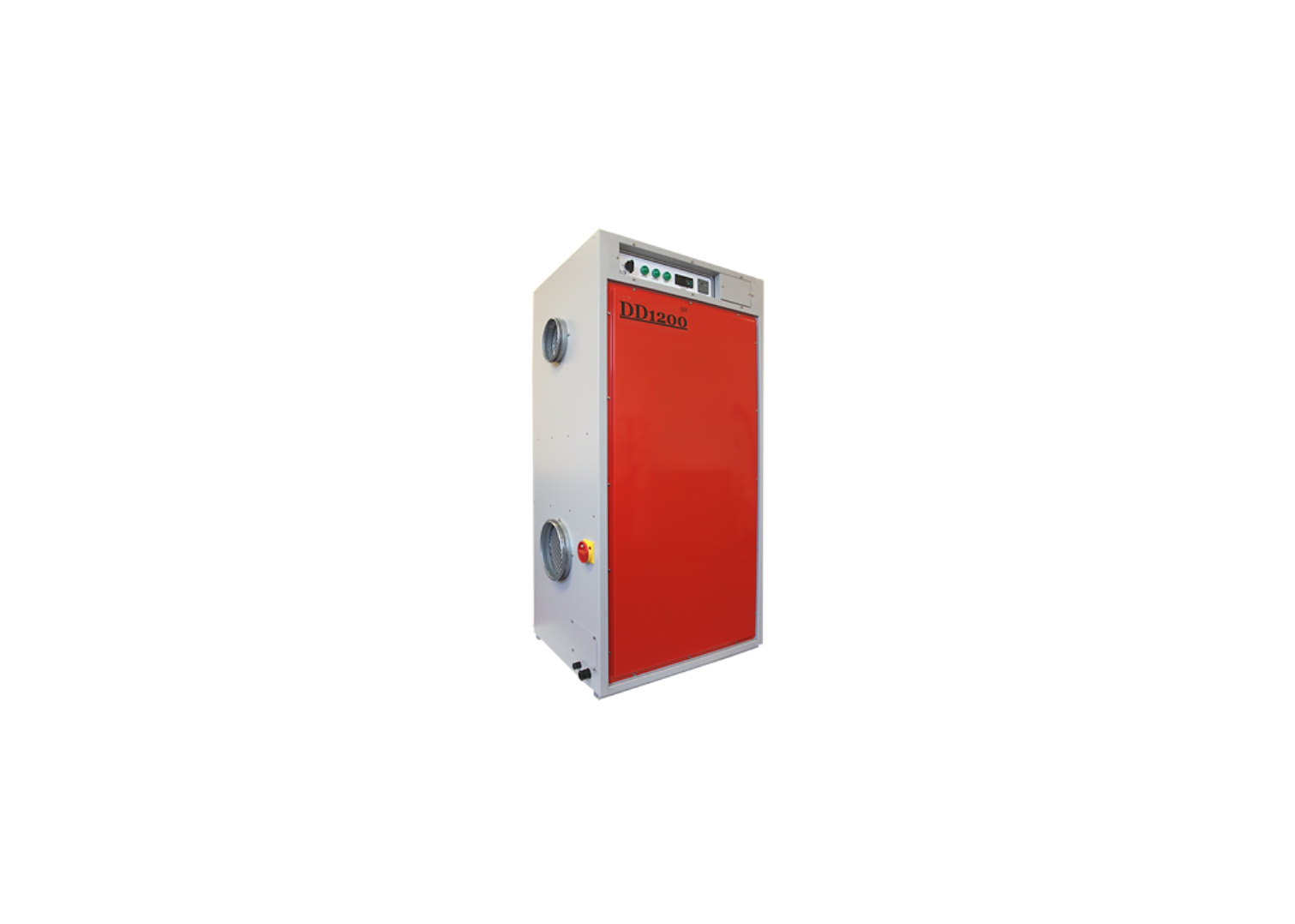

Ebac DD1200 Desiccant Dehumidifier 460Volt 3 Phase 60hz

The DD1200 desiccant dehumidifier has a compact, rugged, lightweight design that facilitates easy transportation by one person and is easily accommodated within space-restricted areas. The unit incorporates a resistive Heater ensuring maximum drying is immediately reached and constantly maintained while the unit is running. In addition to the hours run meter, which shows the unit running time, an ammeter is also incorporated in order to monitor the unit drying effectiveness. Manual / Automatic control is a standard feature within the DD range of desiccant dehumidifiers, and a remote humidistat can quickly and easily be connected for automatic operation and control. The EIP range of DD desiccant dehumidifiers are all manufactured from high-grade stainless steel, ensuring a rust-free product when used in the most severe of applications. The spigot connectors allow quick and easy installation. All models incorporate a high-efficiency patented PPS Rotor. This design incorporates an 82% active Silica Gel to ensure optimum performance over the equipment's wide operating range of environments. All desiccant rotors supplied by EIPL are washable, and designed for high performance / long life.

Application

Dehumidifiers are required wherever there is a need to lower the humidity level to prevent corrosion, mold growth, and condensation or maintain a low humidity condition during the manufacture, packaging, or storing of hygroscopic products.




Methods Of Dehumidification

Dehumidification is possible using two possible principles, Condensation with refrigeration-style dehumidifiers and Adsorption with desiccant dehumidifiers. Desiccant dehumidifiers perform exceptionally well when used in cooler climates, or when a low dew-point, deep drying or low humidity levels are required. Since desiccant dehumidifiers do not produce water, they will work effectively down to sub-zero temperatures. Their operation is simplistic yet extremely effective and reliable. Air (Process Air) is drawn into the dehumidifier, where it passes over a wheel impregnated with Silica Gel. As the air passes over this wheel, any moisture present in the air is absorbed into the Silica Gel wheel before leaving the dehumidifier as warm dry air. The Silica Gel wheel is continually, slowly rotating, typically at three revolutions per hour. As the wheel rotates, a small portion passes through the regeneration segment. During this phase, a second air stream (Regeneration Air) is heated to a high temperature before passing over the wheel. Any moisture present in the wheel is released into this air stream; this hot wet air is then exhausted outside the area being dried.




Key Design Features

Stainless Steel Construction, Auto / Manual Mode Selection, Electronic Controls, High Capacity Heater, Remote Humidistat Facility, Low Temperature Operation, Ammeter




Why Choose Ebac

EIPL is Europe’s leading manufacturer of dehumidifiers and is a name you can rely on. No matter how extreme the conditions EIPL’s efficiency copes comfortably even at the coldest temperatures.




Rugged Construction & Years Of Service

Over thirty-seven years of development experience means you can rely on the proven track record of the EIP range of dehumidifiers. Every dehumidifier is designed for efficiency and ruggedness and built to last. The popularity of EIP Ltd’s dehumidifiers with the plant hire trade speaks for their reliability, portability, and outstanding
durability.




DD1200

The DD1200 desiccant dehumidifier has a compact, rugged, lightweight design that facilitates easy transportation by one person and is easily accommodated within space-restricted areas. The unit incorporates a resistive Heater ensuring maximum drying is immediately reached and constantly maintained while the unit is running. In addition to the hours run meter, which shows the unit running time, an ammeter is also incorporated in order to monitor the unit drying effectiveness. Manual / Automatic control is a standard feature within the DD range of desiccant dehumidifiers, and a remote humidistat can quickly and easily be connected for automatic operation and control. The EIP range of DD desiccant dehumidifiers are all manufactured from high-grade stainless steel, ensuring a rust-free product when used in the most severe of applications. The spigot connectors allow quick and easy installation. All models incorporate a high-efficiency patented PPS Rotor. This design incorporates an 82% active Silica Gel to ensure optimum performance over the equipment's wide operating range of environments. All desiccant rotors supplied by EIPL are washable, and designed for high performance / long life.


Specifications

Height (inch) 56 56
Width (inch) 28 28
Depth (inch) 23 23
Weight(lbs) 200 200
Voltage 220 460
Phase 3 3
Frequency(Hz) 60 60
Power(kW) 11.8 11.8
Current(A) 31 15
Process Airflow(cfm) 705 705
Regen Airflow(cfm) 195 195
Process Duct Size (inch) 5.0 5.0
Regen Duct Size (inch) 4.0 4.0
Noise Level(dba) 67 67
Typical Extraction(ppd) 562 562
Min Operating Temp (°F) -4 -4
Max OperatingTemp (°F) 104 104



Warranty

1-year full coverage from defects in materials and workmanship under normal use.

3-year on the sealed refrigeration system (compressor, evaporator coil, and condenser coil) that prove to be defective.

Description

Freight charge may apply

Delivers with in 7-10 days.

30 days to return



Ebac DD1200 Desiccant Dehumidifier 460Volt 3 Phase 60hz

The DD1200 desiccant dehumidifier has a compact, rugged, lightweight design that facilitates easy transportation by one person and is easily accommodated within space-restricted areas. The unit incorporates a resistive Heater ensuring maximum drying is immediately reached and constantly maintained while the unit is running. In addition to the hours run meter, which shows the unit running time, an ammeter is also incorporated in order to monitor the unit drying effectiveness. Manual / Automatic control is a standard feature within the DD range of desiccant dehumidifiers, and a remote humidistat can quickly and easily be connected for automatic operation and control. The EIP range of DD desiccant dehumidifiers are all manufactured from high-grade stainless steel, ensuring a rust-free product when used in the most severe of applications. The spigot connectors allow quick and easy installation. All models incorporate a high-efficiency patented PPS Rotor. This design incorporates an 82% active Silica Gel to ensure optimum performance over the equipment's wide operating range of environments. All desiccant rotors supplied by EIPL are washable, and designed for high performance / long life.

Application

Dehumidifiers are required wherever there is a need to lower the humidity level to prevent corrosion, mold growth, and condensation or maintain a low humidity condition during the manufacture, packaging, or storing of hygroscopic products.




Methods Of Dehumidification

Dehumidification is possible using two possible principles, Condensation with refrigeration-style dehumidifiers and Adsorption with desiccant dehumidifiers. Desiccant dehumidifiers perform exceptionally well when used in cooler climates, or when a low dew-point, deep drying or low humidity levels are required. Since desiccant dehumidifiers do not produce water, they will work effectively down to sub-zero temperatures. Their operation is simplistic yet extremely effective and reliable. Air (Process Air) is drawn into the dehumidifier, where it passes over a wheel impregnated with Silica Gel. As the air passes over this wheel, any moisture present in the air is absorbed into the Silica Gel wheel before leaving the dehumidifier as warm dry air. The Silica Gel wheel is continually, slowly rotating, typically at three revolutions per hour. As the wheel rotates, a small portion passes through the regeneration segment. During this phase, a second air stream (Regeneration Air) is heated to a high temperature before passing over the wheel. Any moisture present in the wheel is released into this air stream; this hot wet air is then exhausted outside the area being dried.




Key Design Features

Stainless Steel Construction, Auto / Manual Mode Selection, Electronic Controls, High Capacity Heater, Remote Humidistat Facility, Low Temperature Operation, Ammeter




Why Choose Ebac

EIPL is Europe’s leading manufacturer of dehumidifiers and is a name you can rely on. No matter how extreme the conditions EIPL’s efficiency copes comfortably even at the coldest temperatures.




Rugged Construction & Years Of Service

Over thirty-seven years of development experience means you can rely on the proven track record of the EIP range of dehumidifiers. Every dehumidifier is designed for efficiency and ruggedness and built to last. The popularity of EIP Ltd’s dehumidifiers with the plant hire trade speaks for their reliability, portability, and outstanding
durability.




DD1200

The DD1200 desiccant dehumidifier has a compact, rugged, lightweight design that facilitates easy transportation by one person and is easily accommodated within space-restricted areas. The unit incorporates a resistive Heater ensuring maximum drying is immediately reached and constantly maintained while the unit is running. In addition to the hours run meter, which shows the unit running time, an ammeter is also incorporated in order to monitor the unit drying effectiveness. Manual / Automatic control is a standard feature within the DD range of desiccant dehumidifiers, and a remote humidistat can quickly and easily be connected for automatic operation and control. The EIP range of DD desiccant dehumidifiers are all manufactured from high-grade stainless steel, ensuring a rust-free product when used in the most severe of applications. The spigot connectors allow quick and easy installation. All models incorporate a high-efficiency patented PPS Rotor. This design incorporates an 82% active Silica Gel to ensure optimum performance over the equipment's wide operating range of environments. All desiccant rotors supplied by EIPL are washable, and designed for high performance / long life.


Specifications

Height (inch) 56 56
Width (inch) 28 28
Depth (inch) 23 23
Weight(lbs) 200 200
Voltage 220 460
Phase 3 3
Frequency(Hz) 60 60
Power(kW) 11.8 11.8
Current(A) 31 15
Process Airflow(cfm) 705 705
Regen Airflow(cfm) 195 195
Process Duct Size (inch) 5.0 5.0
Regen Duct Size (inch) 4.0 4.0
Noise Level(dba) 67 67
Typical Extraction(ppd) 562 562
Min Operating Temp (°F) -4 -4
Max OperatingTemp (°F) 104 104



Warranty

1-year full coverage from defects in materials and workmanship under normal use.

3-year on the sealed refrigeration system (compressor, evaporator coil, and condenser coil) that prove to be defective.
